4Runner Overland Series Rear Bumper / 6th Gen / 2025+
No Selection
*NOTE: Ships as bare steel. Product will need to be painted or powder coated to prevent rusting. We recommend test fitting your product prior to coating to ensure proper alignment and fitment.
No Selection
Additional Product Details
Features
Fitment
Add-Ons
Installation
Installation Requires 2 People for Best Results.
Download Install GuideProduct Description

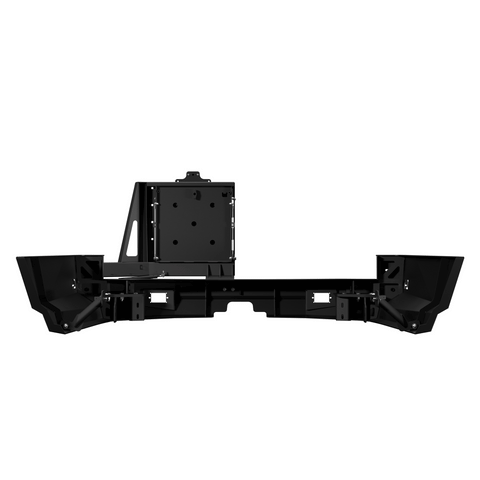

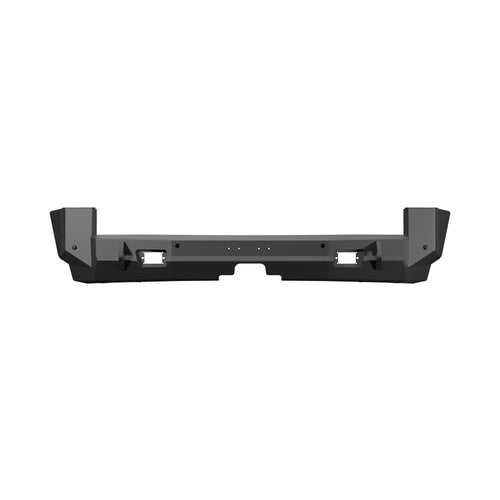

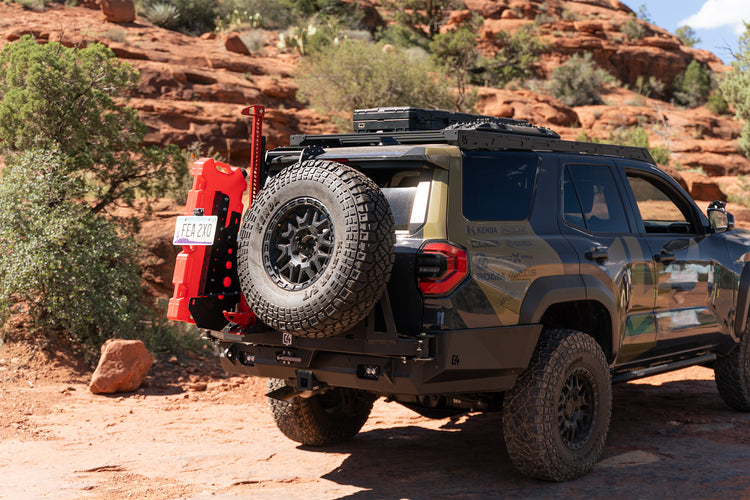

The C4 Fabrication Overland High Clearance Rear Bumper for the 6th Gen Toyota 4Runner is built for rear-end protection, better ground clearance, and improved rear lighting. Its low-profile design maximizes your departure angle on technical terrain. The bumper is made from a laser-cut 3/16-inch P&O steel shell that guards your rear from rocks, brush, and other harsh obstacles, and it rides on 1/4-inch steel mounting brackets. The mounting system adjusts in every direction, so you can dial in the perfect fit. For recovery, the bumper comes standard with 3/4-inch thick D-ring tabs that are fully welded front and back for maximum strength.

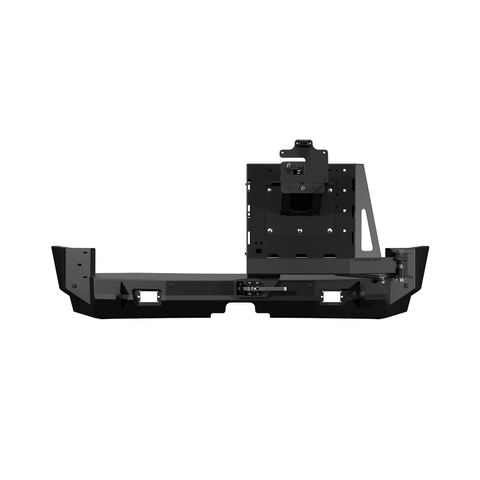

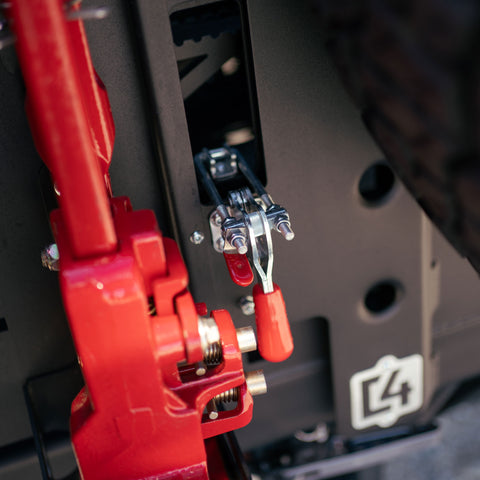

To carry more gear, the bumper comes in Half Swing, Dual Swing, and Full Swing versions. The optional swing-out fits up to a 35-inch tire and uses a heavy-duty, anti-rattle latching system. Optional accessory mounts include a RotopaX mount, Hi-Lift jack mount, jerry can holder, and ham antenna bracket, and every mount can be moved up or down on the swing arms to suit you. Our RotopaX/Maxtrax combo mount holds up to two 4-gallon RotopaX and four Maxtrax and still leaves room for our vertical Hi-Lift mount. A single 2-gallon RotopaX can also sit flat on the swing arm without our mount. RotopaX brand mounts are not included and are required to use with our mount, and we recommend Maxtrax brand mounting pins. On the Half Swing bumper, you'll need to remove the tire mount to bolt on other accessories.

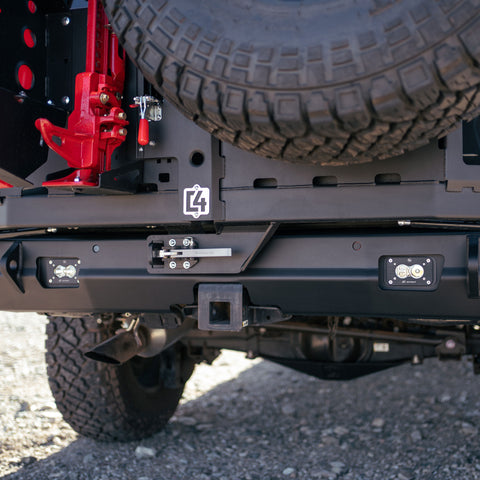

Two pod light mounts provide auxiliary lighting. They're designed specifically for Baja Designs S2 Flush Mount Lights and also fit Rigid SR-M 2×3 Lights. We can't guarantee a perfect fit for other light brands. The bumper keeps the factory parking sensors and blind spot monitoring, along with access to the OEM hitch.
Our optional 2-stage hammer black powder coat protects against the elements and gives your 4Runner's rear a sleek look. If you don't choose the powder coat, the bumper must be painted or powder coated before installation to prevent rust. The base bumper weighs 160 lbs, the half swing version weighs 200 lbs, and the single or dual swing version weighs 240 lbs. Installation requires cutting the plastic factory bumper, and we recommend two people for the job.
Please note: The bumper is not compatible with the electric hatch kick sensor. The swing-outs will also block the backup camera. A camera relocation kit is in development.
Product Details
Standard Features

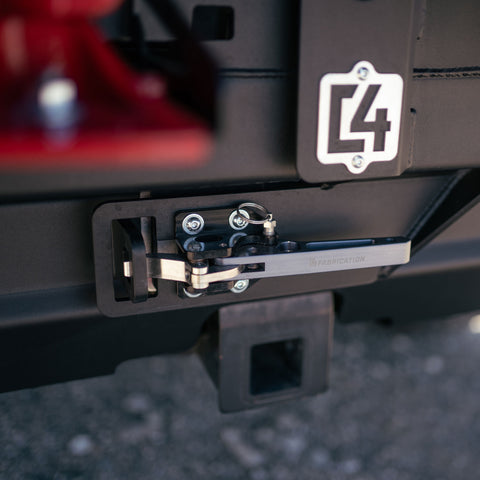

All variants of the Overland Rear Bumper are incredibly strong and improve clearance for the rear of your 4Runner. There are mounting points for Rigid SR-M or Baja S2 reverse lights, 3/4" welded D-Ring tabs, is compatible with our summit ladder, and retains OEM parking and blind-spot sensors. All bumpers with swingouts include position locking pins to avoid the gate extending without user intervention.

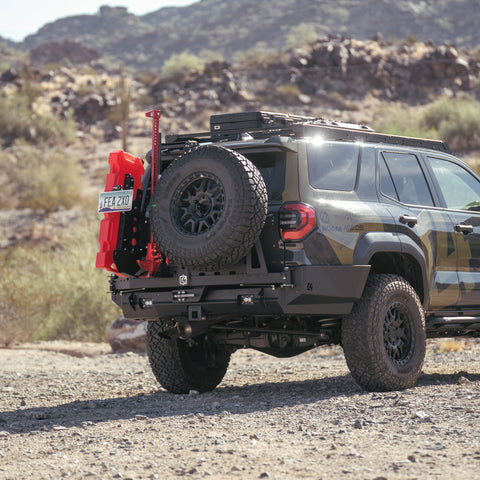

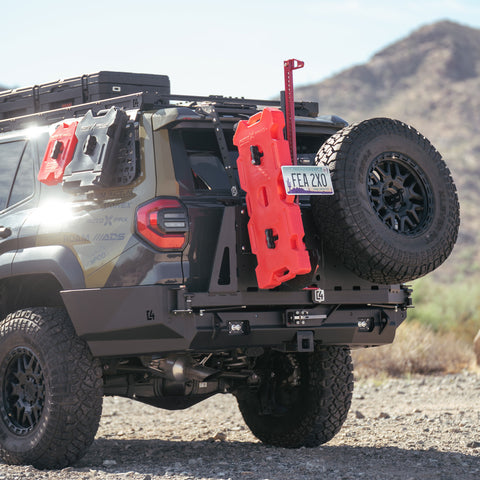

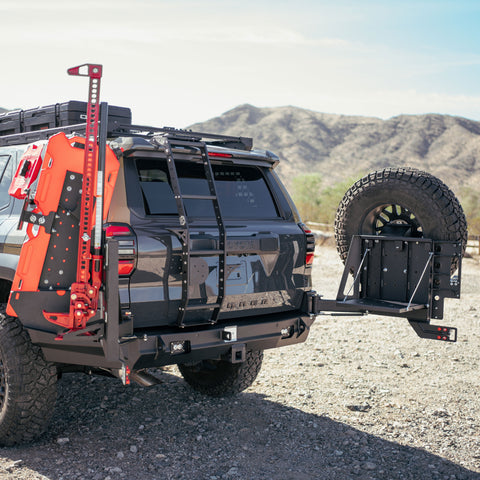

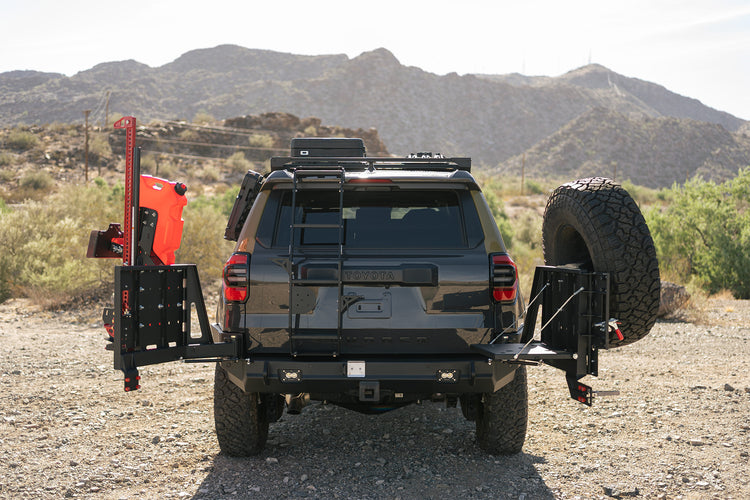

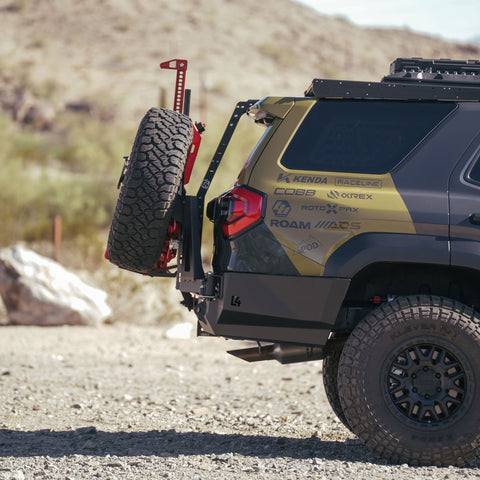

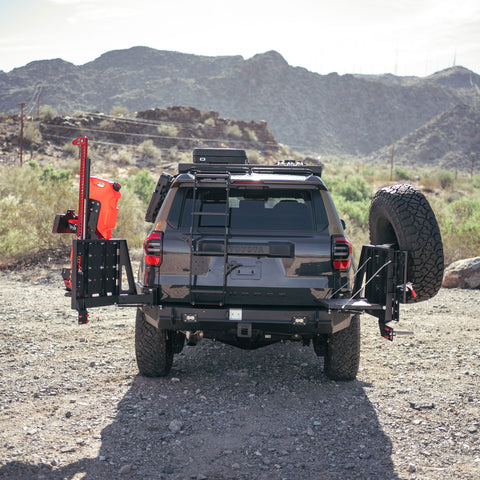

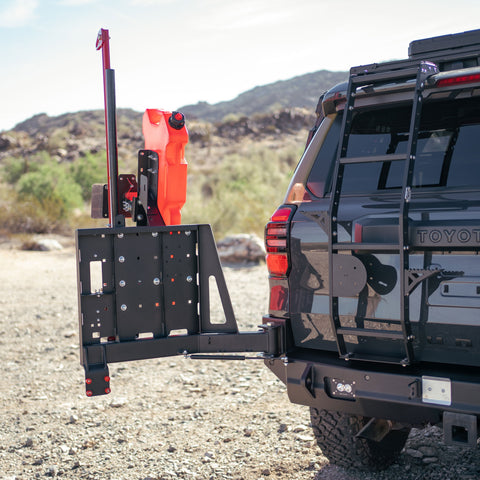

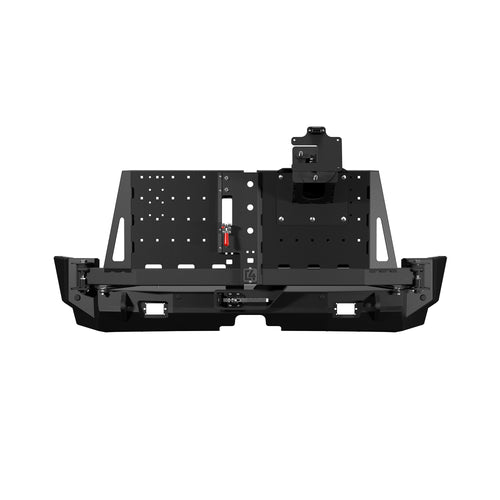

Dual Swing Arms Details

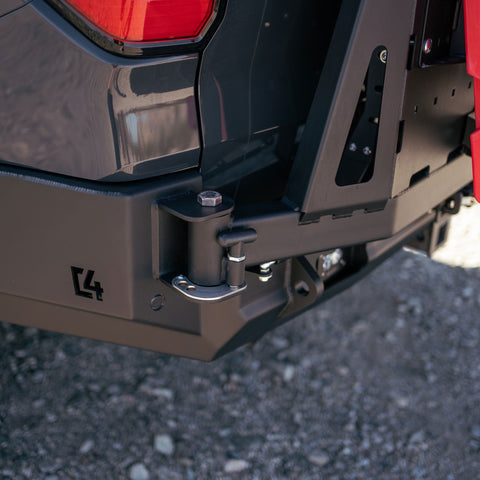

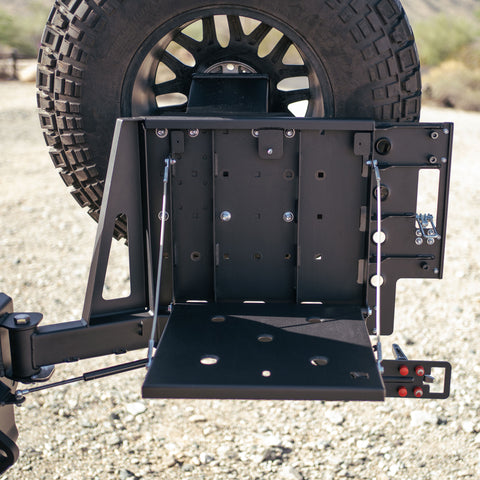

Our Dual Swing Arms variant is designed to maximize storage on the rear, with the ability to open the gates to each side. This is useful in splitting the weight between the two arm bearings. The dual swing is equipped with the standard tire carrier, license bracket, and fold-down table on the passenger side. The driver side gate has many mounting points to put additional gear like jacks, fluid containers, and more.

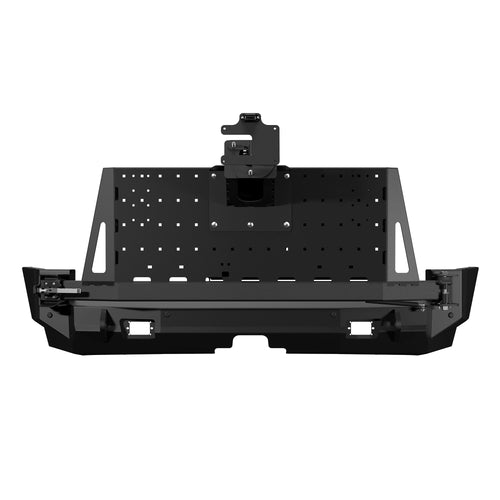

Full Length Swing Arm Details
The Full Length Swing Arm variant is just as capable as the Dual Swing arms, however it swings together on the single arm bearing at the passenger side. The arm latch is located on the drivers side to make opening and controlling the gate easier. The tire carrier and license bracket are included with lots of room for adding accessories around. The full length design allows for a wider fold-down table than the other swing-out variants.

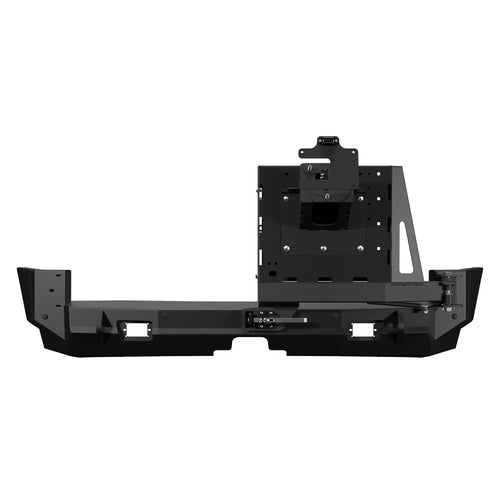

Half Length Swing Arm Details
The Half Length Swing Arm variant is a great way to mount your tire and add some accessories to the platform. This swing out is also equipped with the fold down table.
Add-On Accessories
The accessory mounting points on the swing-out arms can mount our RotoPax mount, Hi-Lift jack mounts, jerry can holders, antenna brackets, and much more. Please not the half-swing does not have enough space to equip the larger mounts. Refer to the drop-down options above.
