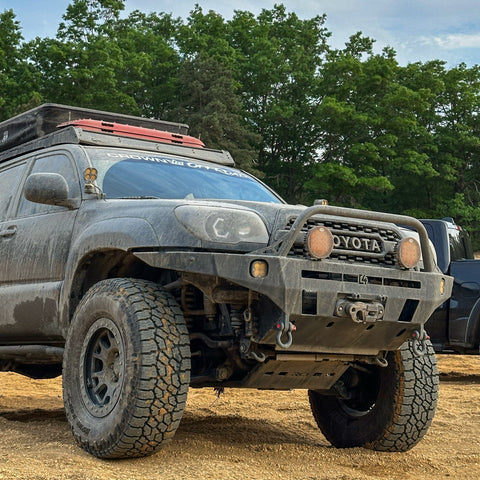

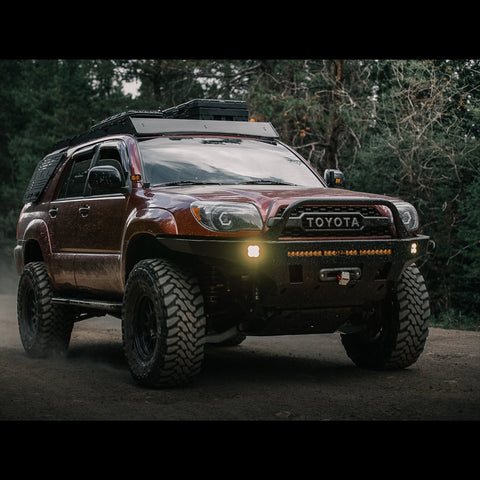

Action shot of a maroon 4Runner Overland Series Front Bumper 4th Gen 2003-2009
Close-up of a maroon 4Runner Overland Series Front Bumper 4th Gen 2003-2009

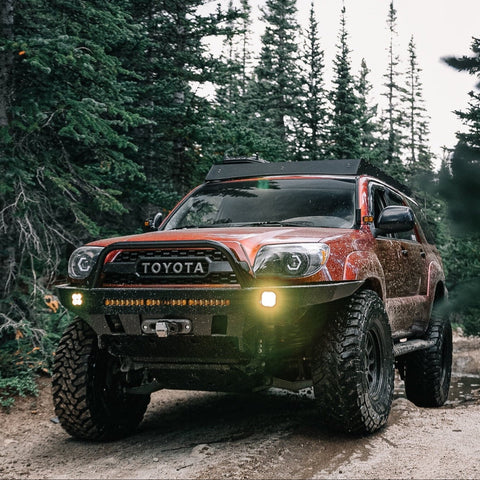

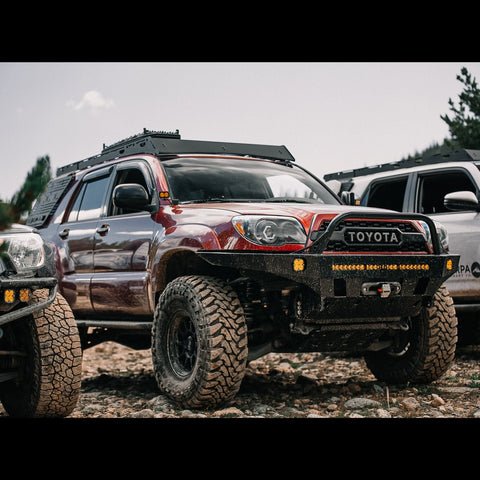

Salsa red pearl 4Runner Overland Series Front Bumper 4th Gen 2003-2009

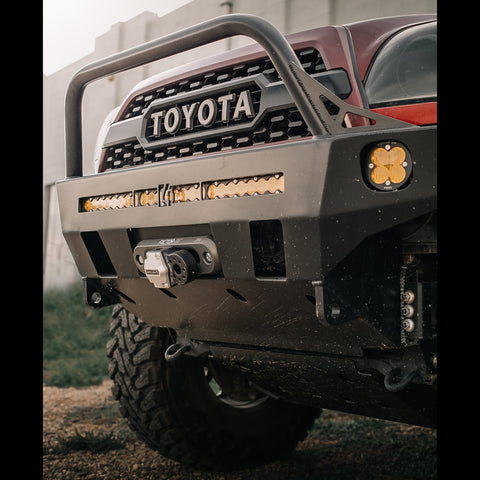

Close-up shot 4Runner Overland Series Front Bumper 4th Gen 2003-2009

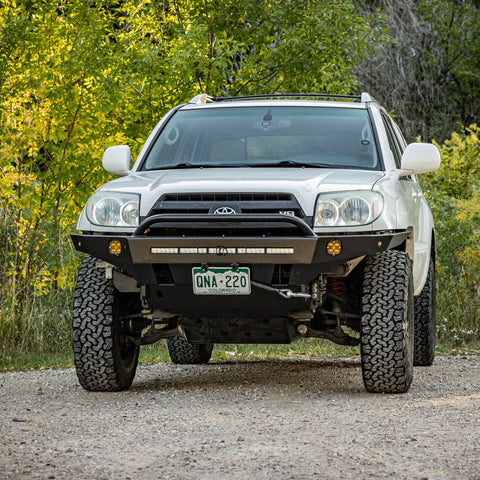

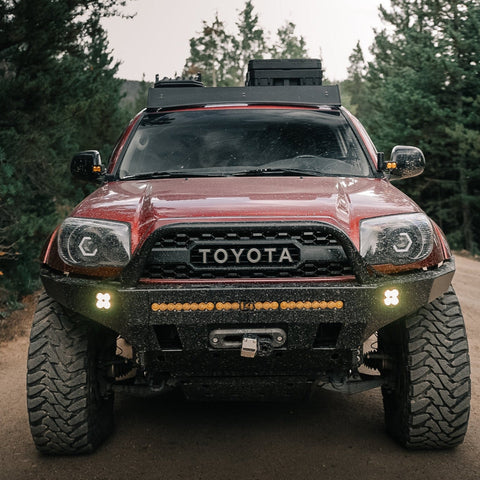

Front view of a maroon 4Runner Overland Series Front Bumper 4th Gen 2003-2009

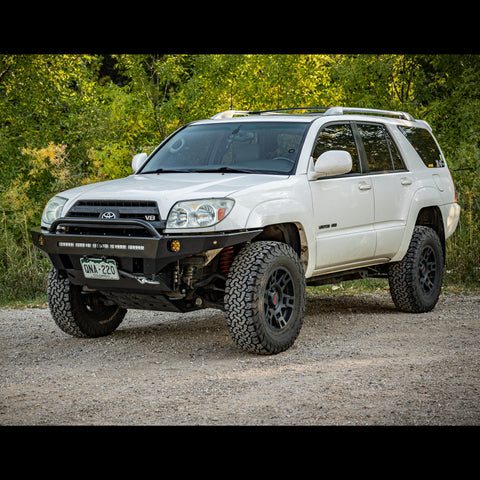

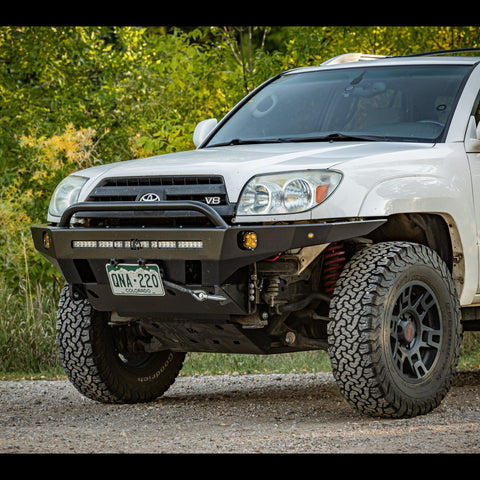

White V8 4Runner Overland Series Front Bumper 4th Gen 2003-2009

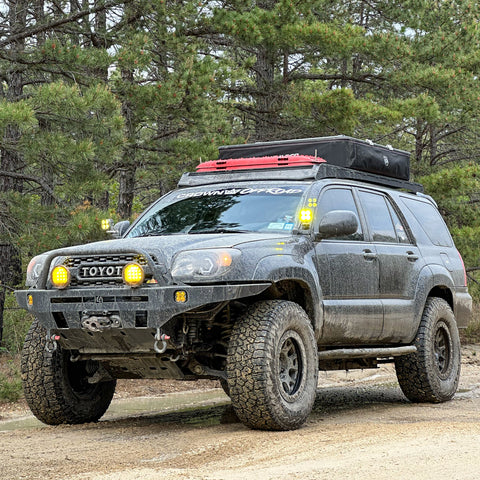

Quartering view 4Runner Overland Series Front Bumper 4th Gen 2003-2009

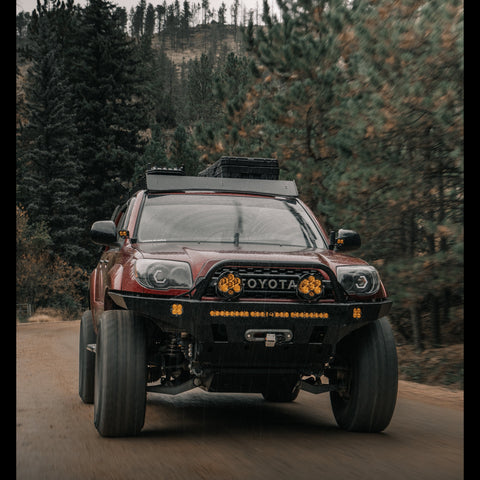

Rolling photo of a 4th Gen 4Runner driving at speed down a mountain road, equipped with a Sherpa roof rack, 35" tires and a C4 Fabrications Overland winch bumper.

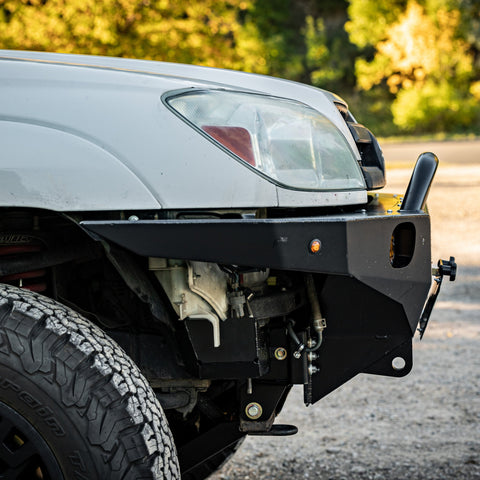

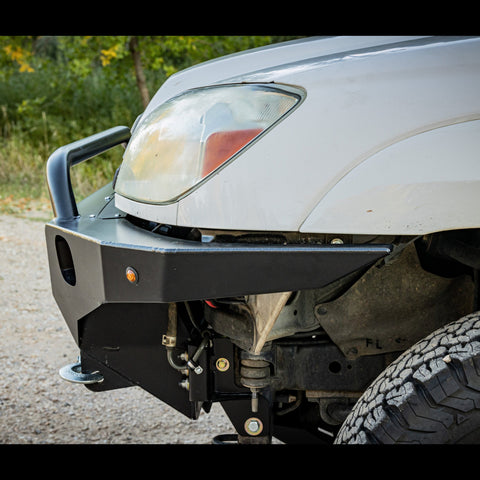

Close-up of the steel plated side wing of the C4 Fabrications Overland front bumper for the 4th Generation 4Runner.

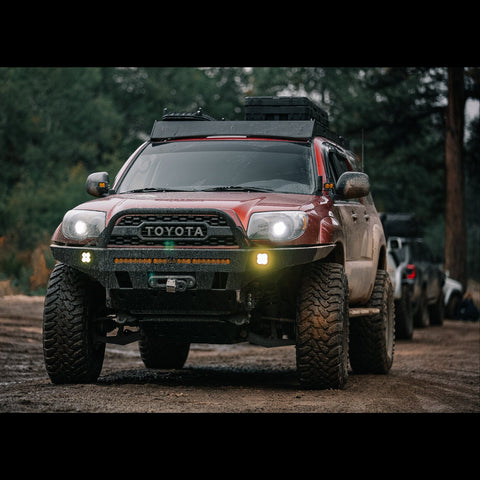

Quartering side view of a 4th Gen 4Runner with a C4 winch bumper equipped.
Slightly angled front view showing the C4 Overland winch bumper with low bull bar for the early 4th Generation Toyota 4Runner.

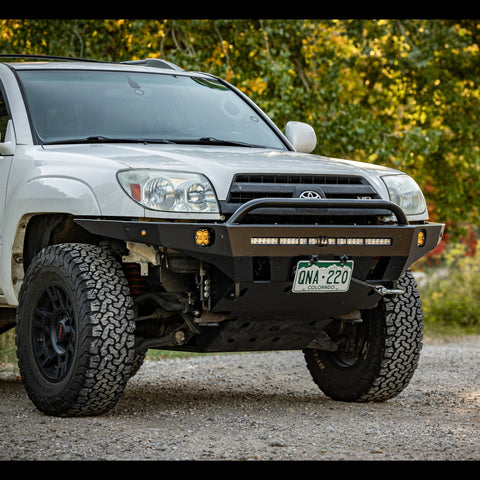

Passenger side angled front view of a white V8 4Runner with a C4 bumper installed.

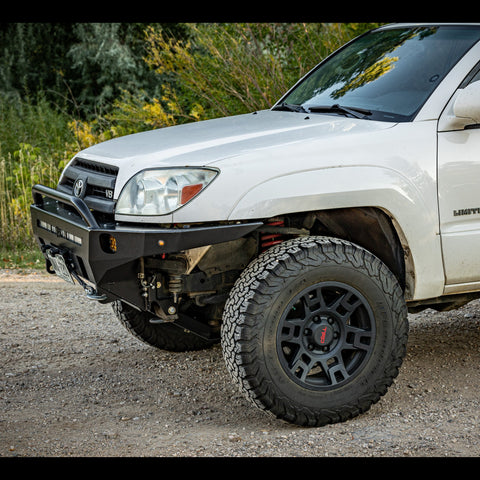

Low angle quartering shot showing the profile of the C4 Overland bumper for 2003-2009 Toyota 4Runners.
High-angle shot showing the C4 Overland bumper for the 4th Generation 4Runner to include the bolt-on winch top cover plate.

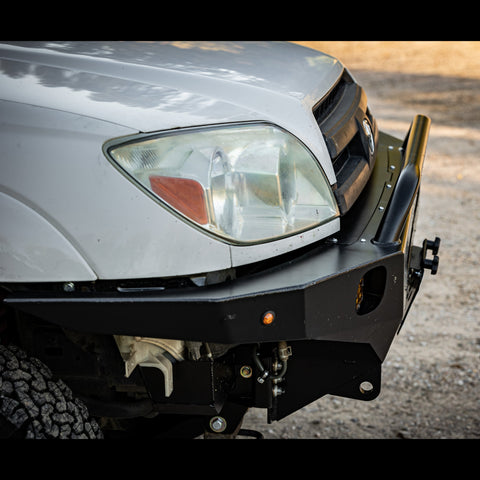

Close-up side view showing the profile of the C4 Overland bumper for 2003-2009 4Runners.
Low-angle shot of the C4 Overland winch bumper for the Toyota 4Runner equipped on a black 2006-2009 model along with roof rack, roof top tent, recovery boards, winch and auxiliary lighting.

C4 Fabrication

4Runner Overland Series Front Bumper / 4th Gen / 2003-2009

SKU: 1100-3103-30-NB
$1,798.00
Choose FINISH:

No Selection

Choose YEAR RANGE:

No Selection

Choose BULL BAR OPTIONS:

No Selection

100% American Made

Innovative Designs

Premium Customer Service

Free Shipping Sitewide

From $1,798.00
4Runner Overland Series Front Bumper / 4th Gen / 2003-2009
From $1,798.00

Features

  • Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
  • Bolt-on top fill plate is included for all 2003-2005 model years.
  • Frame support brackets and washer tank skid are included.
  • Holes for turn signals are pre-drilled and signals or caps are included depending on year range selected.
  • 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
  • Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick frame and winch plates.
  • Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
  • 120lbs without bull bar, 128lbs mid-height bull bar, 130lbs full-height with plate gussets.
  • Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.

Fitment

  • Compatible with up to 2" body lifts.

Add-Ons

  • Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
  • We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
  • Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Heretic Studio will also fit.

Installation



Upgrade your 4th Gen 4Runner (2003–2009) with the Overland Series Front Bumper, engineered for clearance, strength, and off-road capability. Designed to improve approach angles and make room for larger tires, this bumper is built from 3/16″ laser-cut P&O steel with 1/4″ thick frame and winch plates for uncompromising durability. Frame support brackets and a washer tank skid come standard, while fully welded 3/4″ D-ring tabs provide dependable recovery points.

The bumper is winch-ready, fitting most 8k-12k winches, with the best performance from synthetic rope and a hawse fairlead. For lighting, the bumper accepts 30″ single-row light bars such as the Baja Designs S8 or Heretic Studio. Pre-drilled turn signal holes are included, with signals or caps supplied depending on year range, and a bolt-on top fill plate is provided for 2003-2005 models.

The Overland Series Front Bumper is available in multiple bull bar options. Bull bar tubing is made from .120 wall 1-3/4″ diameter HREW tubing for added protection. Unless ordered with a powder coat finish, the bumper must be painted or powder coated before installation to prevent rust.
