Cover photo for the Full Skid Plate set for the 4th Gen Tacoma from C4 Fabrciation.

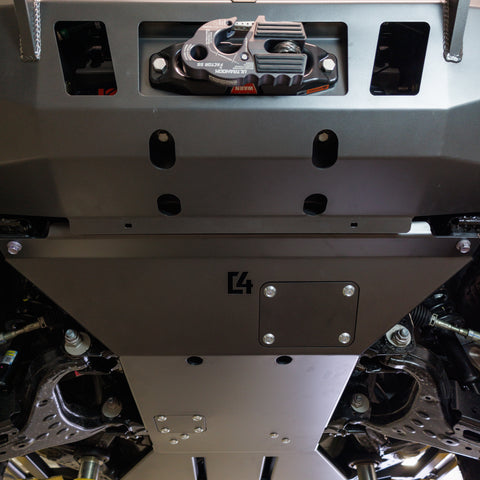

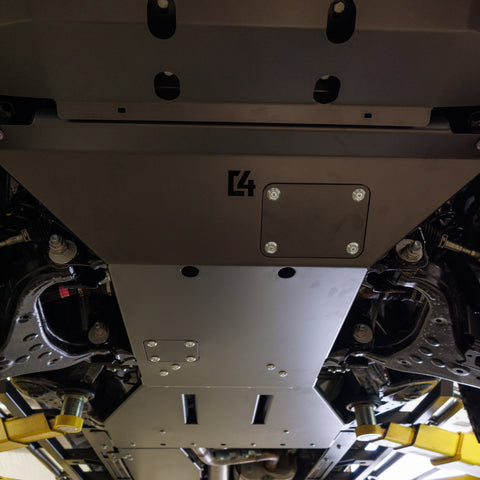

View of the front of the C4 skid plate set for the 4th Gen Tacoma.

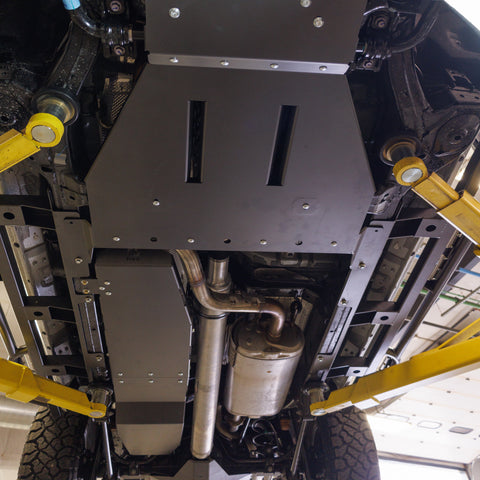

View from below showing the transmission/transfer case protection provided by the C4 skid plate kit.
Land Cruiser Full Skid Plate / 250 Series / 2024+

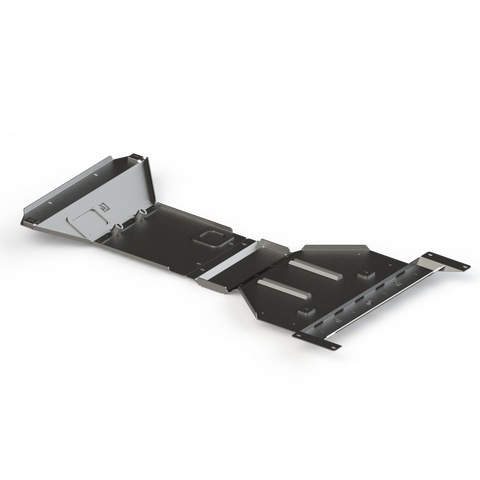

Digital rendering showing the full skid plate kit from C4 for the 2024+ Tacoma non-Hybrid with the sway bar disconnect system.

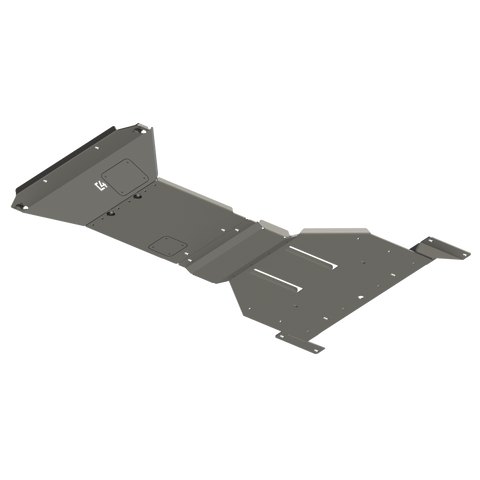

Inside view of a digital rendering of the full skid plate system for the 4th Gen Tacoma non-Hybrid showing the internal structure and reinforcements.

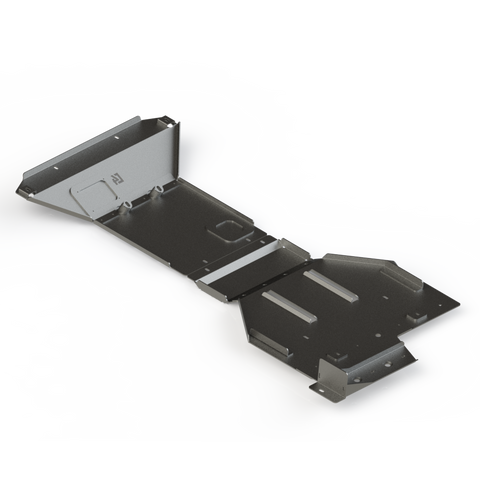

Digital rendering showing the full skid plate kit from C4 for the 2024+ Tacoma Hybrid with the sway bar disconnect system.

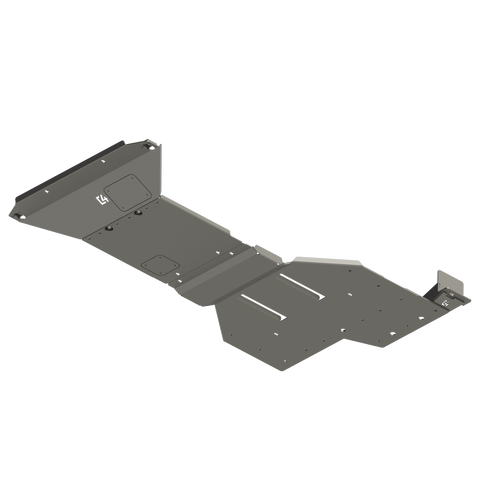

Inside view of a digital rendering of the full skid plate system for the 4th Gen Tacoma Hybrid showing the internal structure and reinforcements.

C4 Fabrication

Tacoma Full Skid Plates / 4th Gen / 2024-2025

SKU: 1224-50600
$1,074.00
Choose FINISH:

No Selection

Choose DRIVETRAIN:

No Selection

Choose SWAY BAR DISCONNECT:

No Selection

100% American Made

Innovative Designs

Premium Customer Service

Free Shipping Sitewide

From $1,074.00
Tacoma Full Skid Plates / 4th Gen / 2024-2025
From $1,074.00

Features

  • Wide coverage to help protect vital engine components.
  • Protects the bottom of the radiator which is exposed on models without the TRD Off Road package.
  • Includes Front and Rear Skid plates which protect the bottom of your Tacoma from the radiator all the way back to the transfer case.
  • Oil Drain and Oil Filter Covers allow for easy oil changes without removing the skid plates
  • Made from 3/16" CNC cut P&O steel
  • Weighs 122lb
  • Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.

Fitment

  • 100% Bolt-On design
  • Works with most aftermarket bumpers
  • All mounting hardware included

Add-Ons

Installation


Click here to download schematic.

Our Full Skid Plates for the 4th Gen Tacoma are designed for complete underside coverage from the radiator to the transfer case. Built from 3/16" CNC-cut P&O steel, these plates deliver the strength you need to guard vital components from rocks, ruts, and debris. The system includes both front and rear skid plates and even shields the bottom of the radiator, which is exposed on models without the TRD Off Road package.

Oil drain and filter access covers make maintenance easy, no need to remove the skids for routine service. With a 100% bolt-on design, included hardware, and compatibility with most aftermarket bumpers, installation is straightforward and secure. Weighing in at 122 lbs, this heavy-duty armor is built to last.

For maximum durability, we recommend choosing the powder-coated finish. Otherwise, the steel must be painted or powder coated before installation to prevent rust. Looking for complete protection? Pick up our Tacoma fuel tank skid for full underbody protection.
