All C4 Products are 100% made in the USA and built to last.
Overview
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Wired remote AND wireless phone options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications
TYPE | Electric |
RECOMMENDED USE | Vehicle Recovery |
MOUNTING LOCATION | Vehicle Mounted |
VOLTAGE | 12 Volt DC |
ELECTRICAL CONTROL TYPE | Albright Contactor |
MOTOR TYPE | Series Wound |
DRIVE GEAR TYPE | 3-Stage Planetary |
GEAR REDUCTION RATIO | 234:1 |
FREE SPOOLING | Yes |
BRAKE TYPE | Spring |
LINE DIAMETER (IN) | 3/8 Inch |
LINE MATERIAL | Synthetic |
LENGTH (FT) | 90 |
FAIRLEAD TYPE | Hawse |
REMOTE TYPE | Plug in remote with wireless phone capability |
MOUNTING HOLE QUANTITY | 4 |

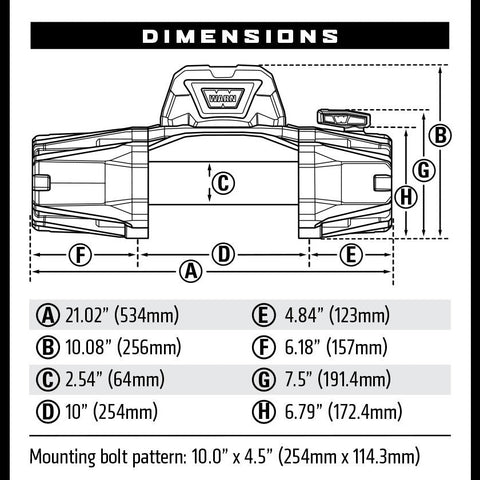

MOUNTING PATTERN LENGTH (IN) | 10 Inch |
MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
INCLUDES MOUNTING HARDWARE | Yes |
COLOR | Black |
DRUM MATERIAL | Steel |
MAX LINE PULL/ LINE SPEED | 12,000 pounds / 4.0 feet per minute |
MAX AMP DRAW/ LINE PULL | 396 Amps / 12,000 pounds |
