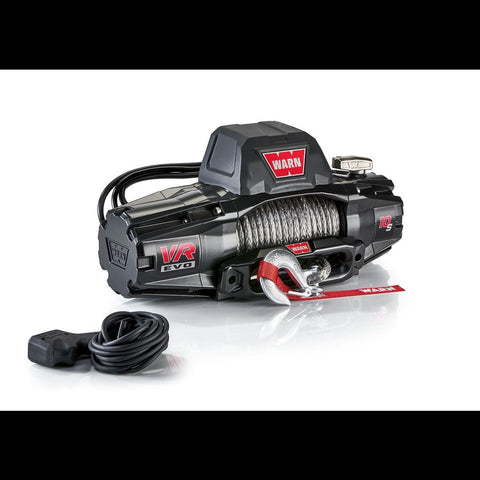

Warn VR EVO 10-S WINCH

$896.92

Product Description
Shipping Details
Instructions

Ships within 3 weeks.

Overview

With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability
Wired remote AND wireless phone options for ease of use and versatility
Limited lifetime warranty for mechanical parts and 7 years on the electrical

Specifications

TYPE	Electric
RECOMMENDED USE	Vehicle Recovery
MOUNT TYPE	Vehicle Mount
VOLTAGE	12 Volt DC
ELECTRICAL CONTROL TYPE	Albright Contactor
MOTOR TYPE	Series Wound
DRIVE GEAR TYPE	3-Stage Planetary
GEAR REDUCTION RATIO	218:1
FREE SPOOLING	Yes
BRAKE TYPE	Spring
LINE DIAMETER (IN)	3/8 Inch
LINE LENGTH (FT)	90
LINE MATERIAL	Synthetic
FAIRLEAD TYPE	Hawse
REMOTE TYPE	plug in remote with wireless phone capability
MOUNTING HOLE QUANTITY	4

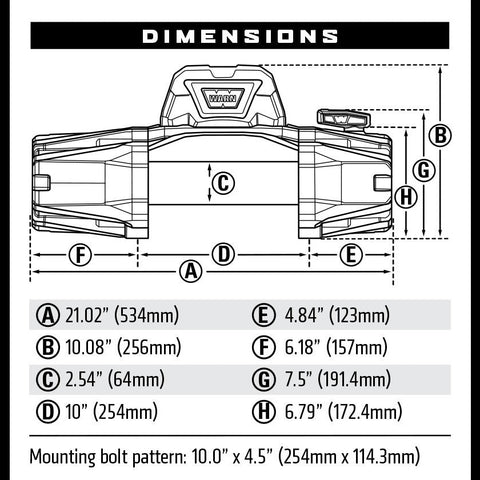

MOUNTING PATTERN LENGTH (IN)	10 Inch
MOUNTING PATTERN WIDTH (IN)	4-1/2 Inch
INCLUDES MOUNTING HARDWARE	Yes
COLOR	Black
MAX LINE PULL/ LINE SPEED	1000 pound / 5.2 feet per minute
MAX AMP DRAW/ LINE PULL	358 Amps / 1000 pounds
DRUM MATERIAL	Steel
